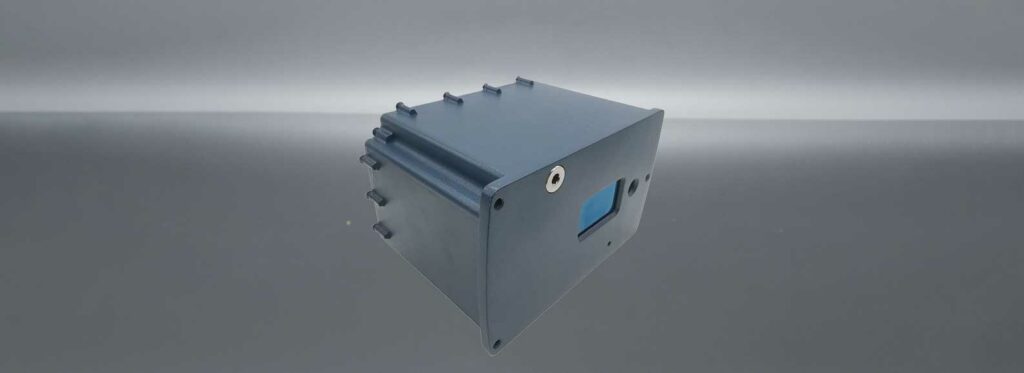

UL-LHM-1535D Laser Clearance Monitoring Lidar
Download product PDF

The UL-LHM-1535D Laser Clearance Monitoring Lidar boasts a compact design, low power consumption, Multi-Lidar correlation detection, wide range of operating temperature, and low visibility discrimination, making it well-suited for operation in harsh environmental conditions. It can monitor and measure the clearance between the blade tip and tower of a wind turbine in real-time during its operation. If the minimum clearance value reaches the set limit, it can trigger an alarm and emergency shutdown through the blade tip clearance monitoring system, thereby ensuring the safe operation of the wind turbine.

Features Application Scene
  • Eye-Safe
  • Low Visibility Discrimination
  • Fully sealed, high reliability, with pollution warning function
  • Multi-Lidar Correlation Detection
  • High Peak Power Measurement
  • High Precision Measurement
  • Compact Design & Easy Integration
  • ON/OFF Remote Control
  • Rainy and snowy weather
  • Low visibility
  • Marine environment

Parameter

ParametersIVY-LHM-1535D
Laser Source1535nm, Class 1, Eye safe
Spot Size40*40cm (100m)
Weight1kg
Supply Voltage24V
Measurement Accuracy±0.3m@100m
Detection Distance≥300m
Range Resolution0.1m
ControlTurn on/off Laser Clearance Monitoring Lidar automatically
Output InterfaceRS485, Network interface
Lightning Protection LevelCLASS-Ⅱ
Communication Frequency≥2KHz, Adjustable
Radiation Frequency≥2KHz, Adjustable
Return DataDirectly Measure Distance, Return Light Intensity, System Status
Operating Temperature－40℃~ +65℃
Storage Temperature－45℃~ +70℃
Operating Humidity0%~100% RH
Aiming Beam AccuracyDeviation of ±0.1°to Measuring Beam
Aiming Beam SpotIt is clearly visible in 200 meters under sunlight
Data StorageData Output, Real-time Data, Network Time Synchronization, 115200 baud

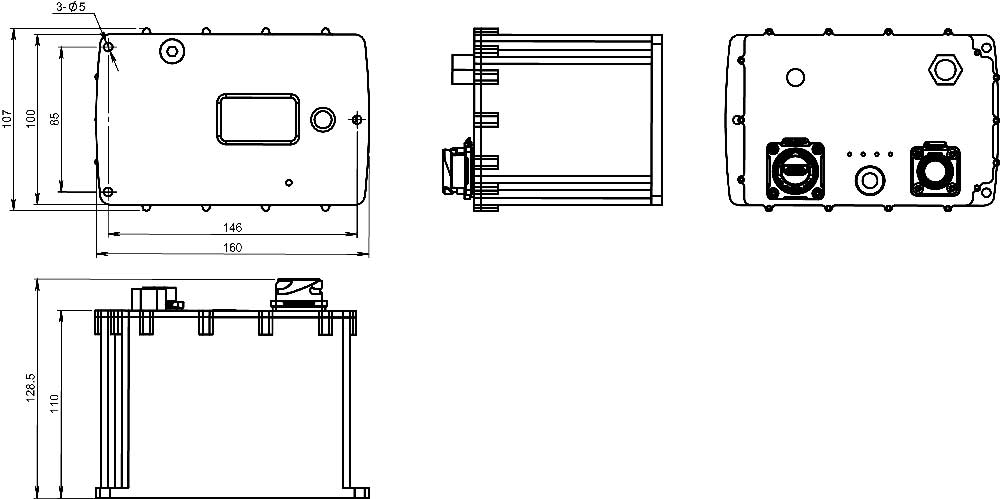

Structural Drawing

Product Schematic diagram Structural Drawing (In mm)
