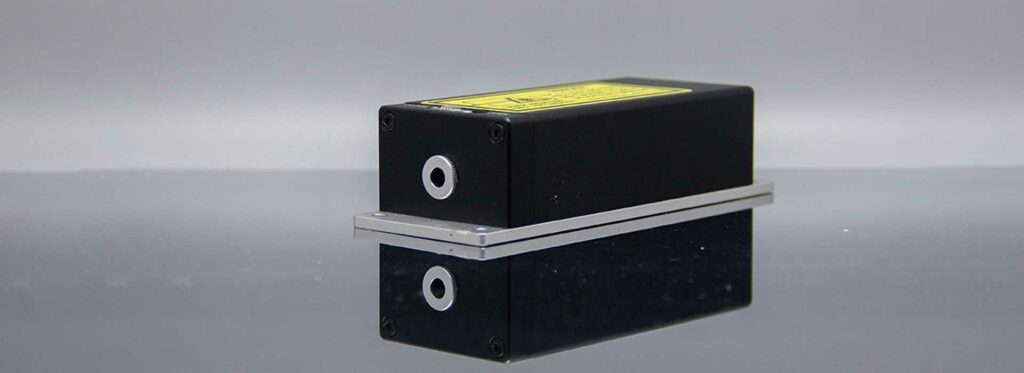

515nm Yb:YAG q-switched nanosecond laser
Download product PDF

ULaser’s 515nm laser can emit good yellow light. It’s a diode pump laser module, and a nanosecond pulsed laser. Our 515nm laser is based on Yb:YAG crystal. With the q-switched crystal, it can achieve nanosecond output.

Our 515nm laser has pure pulse which leads to higher quality. And our 515nm laser has more stable pulsed laser energy. ULaser adopts the integrated design of diode pump and laser crystal. And ULaser adopts a compact laser head. These designs make our 515nm laser developing to a microchip laser which is superior in small size.

Our 515nm laser is widely used as spectrum laser, laser pump, light source of micromachining or yag laser surgery and other applications.

Main features

 Application
  • Pulse width up to 800ps
  • Pulse energy up to 100 μJ
  • Maximum repetition rate up to 2KHz
  • Beam mode is TEM00
  • Laser micromachining
  • Seed source
  • Ultrasound imaging
  • analytical chemistry
  • Time-resolved Raman spectroscopy
  • Biophotonics



515nm MJ Model and Parameter

ModelUL515-1kHz-40μJ-MJ003
Wavelength(nm)515
Repetition frequency (KHz)1
Average power(mW)40
Output energy(uJ)40
Pulse width (ps)900
Power stability (8h)±3%
Beam modeTEM00
Full-angle divergence angle Typ. (Mrad) level @ 1/e24
Vertical @ 1/e24
Polarization characteristics＞100:1
System power consumption（W）≤15
Power input100-240 VAC,50/60Hz
Control interfaceRS232、USB
Power supply size (W × H × L, mm)168×88×140
Laser head size (W × H × L, mm)45×30×120
Working temperature (℃)15-35
Storage temperature (℃)0-60
515nm MJ Microchip laser system PDF
