280nm/295nm laser
Download product PDF

AMRL003 series UV multiwavelength Raman all-solid-state laser is a laser source for atmospheric ozone monitoring lidar applications. It can output 532 nm, 590 nm (optional), 580 nm (optional), 295 nm, 280 nm laser at the same time. It is an ideal light source for lidar for atmospheric ozone and aerosol monitoring.

Compared with conventional gas Raman lasers, ultraviolet multiwavelength Raman all-solid-state lasers eliminate gas Raman tubes, which are bulky and require constant maintenance. The Raman conversion part is in the form of Raman crystal. It is characterized by compact structure, high Raman efficiency, maintenance-free and long life. The repetition rate can reach 100 Hz. Lidar navigation observation can be achieved. At the same time, 532 nm laser output is maintained, which can take into account the monitoring of atmospheric aerosols.

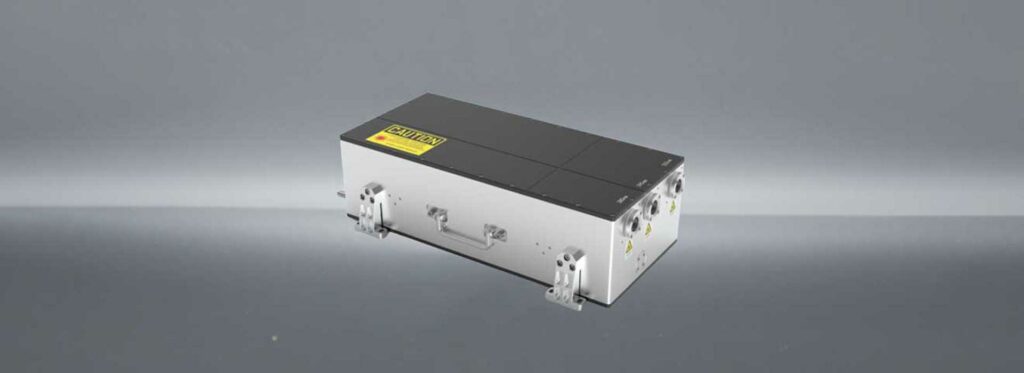

This product uses modular design ideas. It is mainly composed of laser head, water cooler and control box. For customer scenarios, this product is designed with low cost and high quality. After rigorous quality testing, can meet the long-term use of customers.

UL-3mJ-100Hz-AMRL003 parameters

ParameterData
ModelUL-3mJ-100Hz-AMRL003
Wavelength280nm295nm532nm
Energy>500μJ>500μJ>3mJ
Pulse width6-10ns
Repetition frequency100Hz
Full angle of beam divergence<0.3 mrad
Spot diameter~20mm
Polarization ratioHorizontal polarization, polarization ratio>100:1
Beam directivity≤±30μrad
Q-switch triggered synchronous output3~ 5V@50 ΩTTL
Pulse Width 1.8μs
Jitter <2ns
Communication interfaceRS232 communication protocol
Cooling modeWater-cooling
Power supply220V AC or 380V AC
Power waste≤2500W (water cooler and laser power)
Working temperature15~+30℃
Storage temperature0~+50℃，Low temperature storage requires cooling water removal
Relative humidity0~80%
Vibration requirementsVibration of highway transportation
